2 Channel Universal Power Supply Class-D 1U PFC Digital Power Amplifier
. Powerful 2x580W to 2x2800W in compact 1U rack space.
. PFC (Power Factor Correction) built-in.
. Wide operating voltage range ~90-264V. No worry about unstable power voltage.
. Smaller size and light weight. Easy carry and installation.
. Can work at resistance range 2-8 ohm or above. High stability.
Specifications
SPECIFICATIONS
| Model No. | AT435 | AT500 | AT-650 | AT-800 | AT-900 | AT-1100 | AT-1400 | AT-1800 |
| Channel number | 2 channel | 2 channel | 2 channel | 2 channel | 2 channel | 2 channel | 2 channel | 2 channel |
| Rated output power | 8 ohm | 350Wx2 | 500Wx2 | 650Wx2 | 800Wx2 | 900Wx2 | 1100Wx2 | 1400Wx2 | 1700Wx2 |
| Rated output power | 4 ohm | 580Wx2 | 800Wx2 | 1050Wx2 | 1300Wx2 | 1400Wx2 | 1800Wx2 | 2300Wx2 | 2800Wx2 |
| Rated output power | 2 ohm | 1100Wx2 | 1100Wx2 | 1250Wx2 | 1500Wx2 | 1750Wx2 | 2000Wx2 | 2600Wx2 | 3600Wx2 |
| Bridged output power | 8 ohm | 1160W | 1600W | 2100W | 2600W | 2800W | 3600W | 4600W | 5500W |
| Bridged output power | 4 ohm | 1600W | 2200W | 2800W | 3500W | 3500W | 4000W | 5200W | 7200W |
| Circuit Category | CLASS D | | CLASS D | CLASS D | CLASS D | CLASS D | CLASS D | CLASS D |
| Voltage Gain | 40.8/38.6/32 | | 41.2/39/32 | 42.7/40.5/32 | 40.8/38.6/32 | 41.2/39/32 | 42.7/40.5/32 |
| THD (total harmony distortion) | ≤0.035% (@ 8ohm,1kHz,1/8 rated power) | ≤0.05% | |
| IMD(intermodulation distort.) | ≤0.15% (@ 8 ohm,1kHz,1/8 rated power) |
| S/N Ratio (20Hz-20Khz,4 Ohms) | >106dB A |
| Cross-talk (1kHZ, 4 Ohms) | >40dB |
| Frequency response | 10Hz to 20k Hz,+/-1dB |
| Input impedance | balanced 20K/ non-balanced 10K |
| Damping factor (10-400Hz,8Ohms) | ≥600 |
| Slew Rate | ≥20v/uS |
| Input sensitivity | 0.775V,0dB |
| Protection funtion | short circuit, direct current, over-load and amplitude limit. |
| Control knobs | power ON/OFF switch,VOLUME control in front panel . STEREO/BRIDGE/MONO switch in rear panel . |
| LED indicators | CLIP/-10dB/SIGNAL/MONO/BRIDGE/STATUS indicators in front panel |
| Power delay | 4 seconds |
| Input interface | XLR input socket |
| Output interface | SPEAKON connector |
| Size (WxHxD) | 483x44x230mm |
| Net weight | 5.5kg | 5.5kg | 5.8kg | 6.2kg | 6.4kg | 6.5kg | 6.9kg | 8.2KG |
PRODUCT FEATURES
DOLSI AT Series are digital power amplifier with Class D circuit category, a new milestone in amplfier development. PFC ( Power Factor Correction) technology is used in AT series . So the amplifiers can work well in power supply range ~90-260V. Advanced Class D PCB module and SMPS power supply module are used to obtain high efficiency and stability. It has very high power density, which makes the amplifier to reach powerful output in a very small shell space.
. Unique and elegant enclosure design .
. Compact structure with only 1U height and 9" depth and light weight, easy to move and install.
. Fixed switch frequency Class-D PCB module.
. Soft resonant switching power supply LLC module.
. Active power factor correction technique (PFC), can work with high stability under full
voltage range 90-264V .
. High efficiency loudspeaker EMF absorption system.
. Unique peak clipping limiter and ripple Elimination.
. Low electricity consumption.
. Nice cooling system with quality fans to make wind flow front to the rear.
. Accurate volume control, switch on/off, signal, clip and protection LED light in front panel.
. Fully automatic protections against direct current protection, over heat, over load, on/off switching, RF and amplitude limit.
. XLR balance input and professional SPEAKON output connectors.
. Stereo ,bridge and mono mode selection pull switch is set on back panel.
. Good choice to applications in high power output in live show, outdoor event, stadium,
and flow performance.
|
|

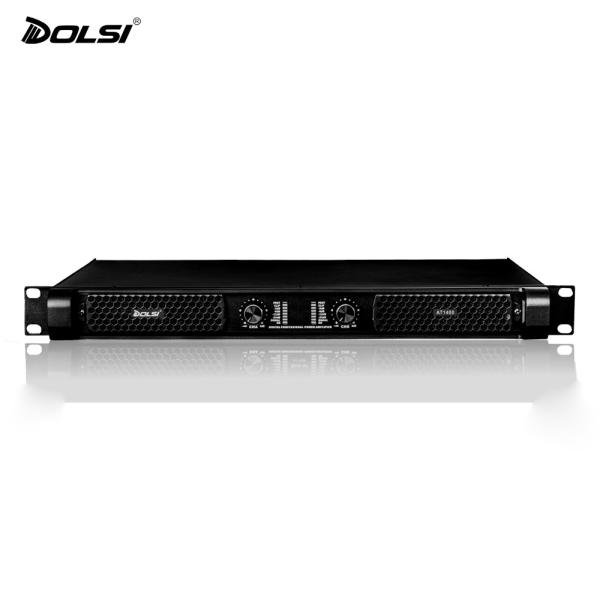

Universal Operating Voltage Class D 1 rack unit 2 channel pro. audio touring amplifier Images
|
